Sit-to-stand table with tilt function – Erg-O-Let 310 – Model 2
Specifications
| Sizes | |
|---|---|
| approx. weight | 110kg |
| Lifting capacity | 400kg |
| Table top | 15 mm birch plywood film/film, 18 mm Melamine board (ABS edge) |
| Vip function | up to 80° |
| Lifting columns | 2 pcs. LA31 – 450 slg. 1 pcs. tilt actuator 400 slg. |
| Front edge | 50 mm above frame – Bolted, removable. |
| Wheels | Ø75 |
| Maximum tilting capacity | 200 kg. per actuator |
(The color in the product image does not always correspond to the selected color)
All our products are available in custom sizes
Click the “Get a quote” button and fill out the form and we will contact you with a quote.
This height-adjustable table with tilt function is the second of four models in the series.
The table is equipped with raise, lower and tilt functions and wheels that are used in the lowest position.
Product description
Product description
Erg-O-Let 310 Vip is a lightweight solution for electrical panel mounting where mobility, flexibility and strength are in focus. Combining practical functionality with ergonomic design, this electronic tilt height adjustable table is an ideal choice for those who need full control over the working height and angle to create a comfortable and efficient working position every time.

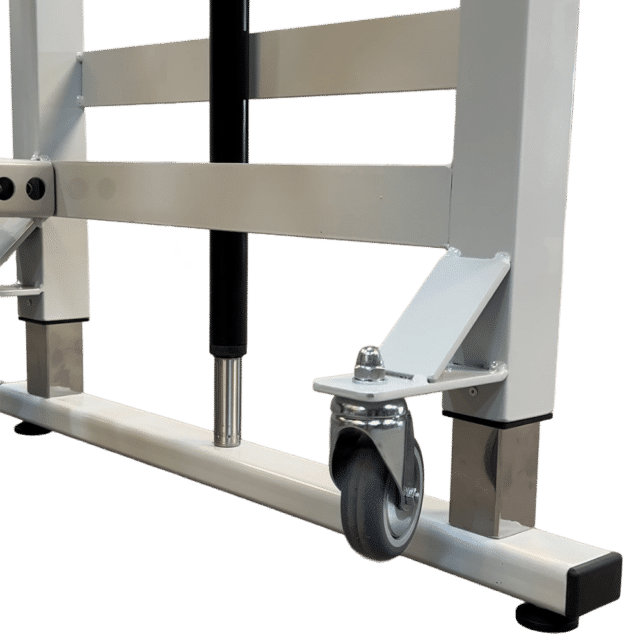

The 15, 18 or 21 mm birch plywood tabletop ensures both strength and lightness, while the frame, which is powder-coated in a color of your choice, adds both durability and a clean, professional look. The table is further equipped with an integrated battery and stands on lockable castors in its lowest position, making it easy to move around the workspace without compromising on stability.
The Erg-O-Lift 310 model is characterized by having visible Linak actuators that give the table a more streamlined look, as well as having lockable wheels and can be moved effortlessly. The table is tailor-made for those working with complex and heavy items who want a reliable, powerful and adjustable solution for their workspace.
The Erg-O-Let 310 can also be customized with a rear column system and various accessories such as shelves, lamps, battery and Bluetooth control, with all Linak electronics and actuators ensuring stable and reliable performance. This makes it a tailor-made solution that can meet all your specific work needs for a mobile and powerful workbench for electrical panel assembly and other heavy-duty tasks.
Specifications
Size: 1600x800 mm (Available in multiple sizes)
Worktop: Birch plywood film (15, 18 or 21 mm)
Stroke length: 450 mm
Lifting capacity: 400 kg
Starting height: 760 mm
Tilt frame up to 80 degrees
Powder coating of frame: Optional RAL
Product comparison
| Product name | Sit-to-stand table with tilt function - Erg-O-Let 310 - Model 2 | Sit-to-stand table with tilt function - Erg-O-Lift 300 - Model 2 | Sit-to-stand table with tilt function - Erg-O-Let 310 - Model 4 | Sit-to-stand table with tilt function - Erg-O-Let 310 - Model 3 | Sit-to-stand table with tilt function - Erg-O-Let 310 - Model 1 |
|---|---|---|---|---|---|
| Image |  |  |  |  |  |
| Size | 1600x800mm, 1800x800mm, 2000x800mm | 1600x800mm, 1800x800mm, 2000x800mm | 1600x800mm, 1800x800mm, 2000x800mm | 1600x800mm, 1800x800mm, 2000x800mm | 1600x800mm, 1800x800mm, 2000x800mm |
| Weight | 110kg | 125kg | 120kg | 112kg | 105kg |
| Maximum load | — | — | — | — | — |
| Lifting capacity | 400kg | 400kg | 400kg | 400kg | 400kg |
| Wheels | Ø75 | 4 x Ø100 swivel castors with brakes | Ø75 | Ø75 | — |
