This height-adjustable table with tilt function is the third Variant out of four in the series. The table is equipped with a height-adjustable, lowerable and tilting function, wheels that are used in the lowest position and cable outlets for an optimized work process.
Product description

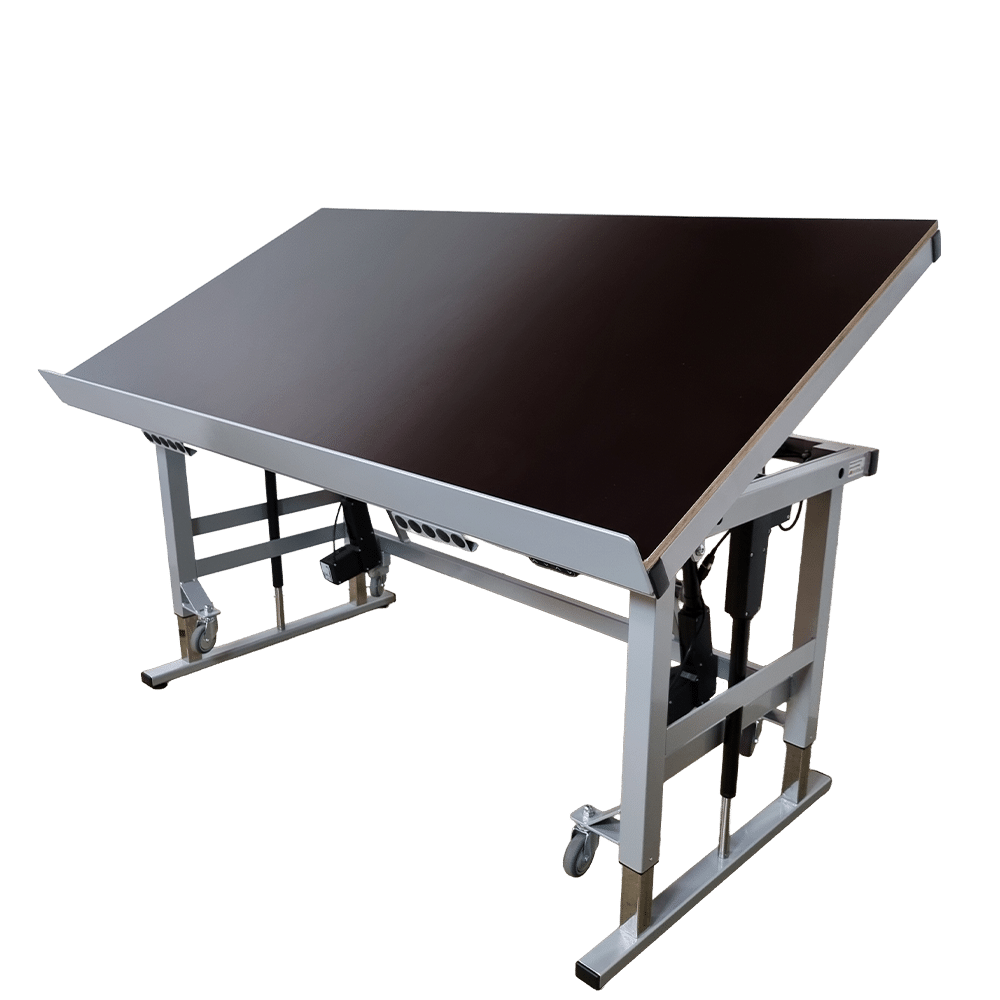

Raise-lower table with tilt function – Erg-O-Let 310 – Variant 3
All our products are available in custom sizes
Click the “Get a quote” button and fill out the form and we will contact you with a quote.
(The color in the product image does not always correspond to the selected color)
Specifications
| Sizes | |
|---|---|
| Starting height | 770mm |
| Maximum height | 1200mm |
| Approximate weight | 112kg |
| Lifting capacity | 400kg |
| Table top | 15 mm birch plywood film/film, 18 mm Melamine board (ABS edge) |
| Front edge | 50 mm above frame – Bolted, removable. |
| Tilt function | up to 80° |
| Maximum tilting capacity | 200 kg. per tilt actuator |
| Lifting columns | 2 pcs. LA31 – 450 slg. 1 pcs. tilt actuator 400 slg. |
| Cable holder overhang | 4 removable cable reel holders. Cable outlets on both sides retain pulled-out cables and ensure easy, ergonomic access from the work area. |
| Wheels | 4 pcs. Ø75 TENTE swivel castors – active in lowest position. The table stands firmly on leveling feet at other heights. |
